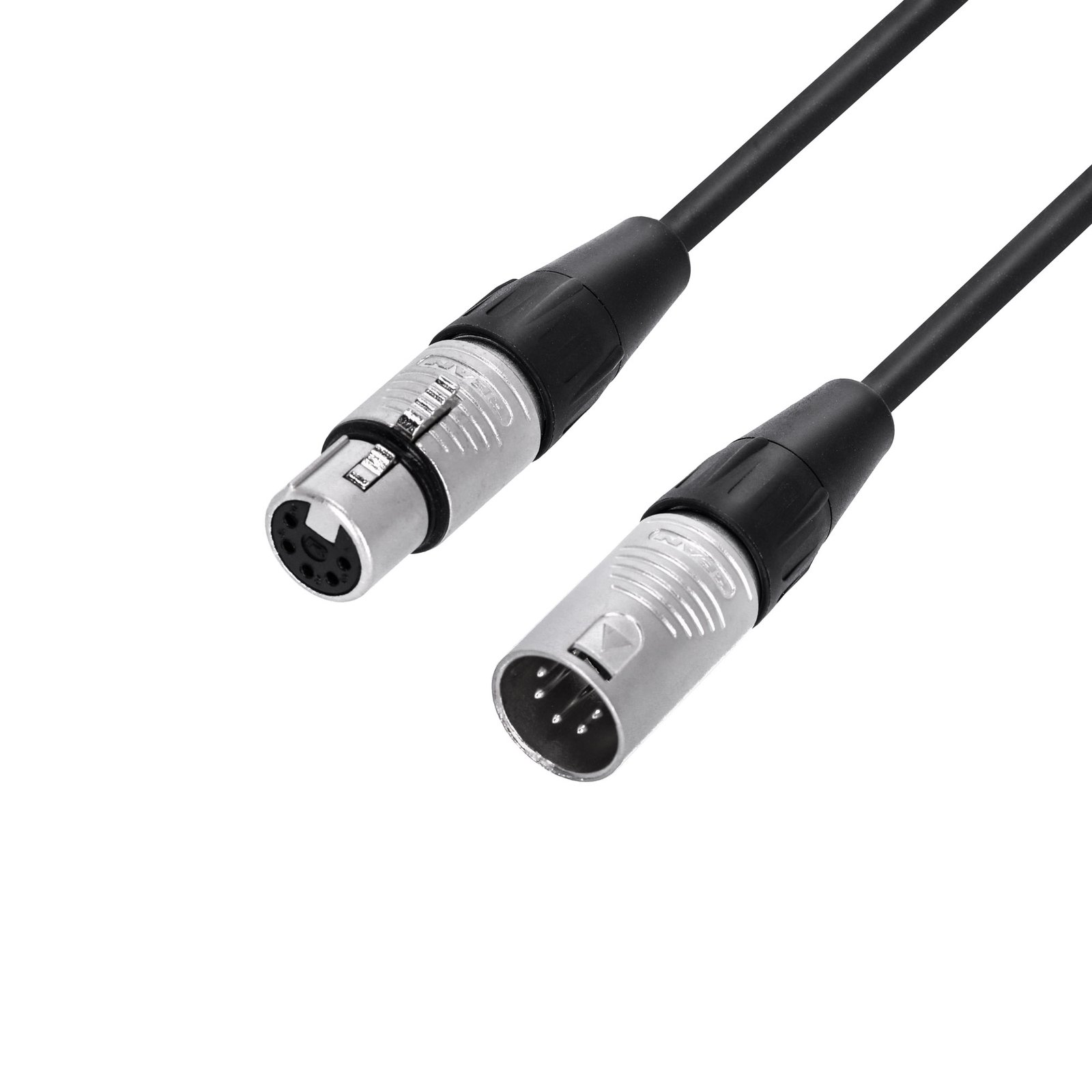

Analogously to the three-pin variant, this data cable is equipped with five-pin plugs by Neutrik © and is thus perfect for transmission of DMX signals for lighting control.
| Product type | Pre-assembled Cables |
| Type | DMX & AES/EBU Cable |
| Cable Length | 3 m |
| Color | Black |
| Cable diameter | 6.4 mm |
| Center conductor cross section | 0.22 mm² |
| Surge Impedance | 53 ohm/km |
| Capacitance | <63 pF/m |
| Connector 1 | XLR |
| Gender of connector 1 | male |
| Poles of connector 1 | 5 |
| Contacts of connector 1 | silver plated |
| Manufacturer of connector 1 | Neutrik |
| Model number connector 1 | NC5MXX |
| Connector 2 | XLR |
| Gender of connector 2 | female |
| Poles of connector 2 | 5 |
| Contacts of connector 2 | silver plated |
| Manufacturer of connector 2 | Neutrik |
| Model number connector 2 | NC5FXX |
| Weight | 0,203 kg |
